LB0602-E Smart WiFi Switch for 2 Lights, 110-240 V 14 A Power Supply, MINI Module for 502/503 flush-mount box

LB0602-E – Smart WiFi switch Module for lights

LB0801-E – installation diagram in the flush-mount box

LB0602-E – compatible with Matter, Alexa, Google Home, Apple HomeKit

LB0602-E WiFi Switch for Controlling 2 Smart Lights, 110–240 V 14 A Power Supply, MINI Module for 502/503 Flush-Mounted Box

Name: LB0602-E WiFi Switch for Controlling 2 Smart Lights, 110–240 V 14 A Power Supply, MINI Module for 502/503 Flush-Mounted Box
Brand: Freedompro
SKU: LB0602-E
Price: 38.90 EUR
Availability: InStock

Installazione Dietro interruttori e prese

Alimentazione 110-240 V

The Freedompro LB0602-E is a MINI WiFi switch relay designed to transform your home lighting into a smart, efficient and fully automated system. Installed in a 502/503 flush-mounted box, this 110-240 V 14 A WiFi module allows you to manage 2 lights, spotlights, lamps or ceiling lights with full remote control.

The LB0602-E is a Matter-certified WiFi MINI smart switch module for controlling 2 lights, offering an unprecedented level of compatibility and ensuring seamless integration with leading smart home ecosystems and voice assistants such as Amazon Alexa, Google Home, Apple Home, Home Assistant, Homey Pro and many others, without the need for additional hubs.

With remote control via the Freedompro Home app, you can schedule when lights switch on and off and monitor the energy consumption of each individual bulb, allowing you to optimise your lighting management, reduce energy waste and improve home comfort.

Simple to install and incredibly powerful, the Freedompro LB0602-E is the ideal solution for anyone looking for a reliable, secure and future-proof WiFi MINI light switch relay for 502/503 flush-mounted boxes.

4.51(102 reviews)

Modello:

LB0602-E

Quantità

€38,90

IVA inclusa.

Non sei sicuro? Ti aiutiamo prima dell'acquisto

Compatibile Matter, davvero

Funziona con Apple Home, Google Home, Alexa, SmartThings e Home Assistant.

Zero hub, zero gateway

Si collega direttamente al WiFi di casa a 2.4 GHz. Niente bridge da comprare a parte.

Installi in 15 minuti

Nessun impianto da rifare, niente interruttori da sostituire.

Made in Italy

Certificato CE, supporto tecnico via chat o telefono.

Specifiche tecniche

📌 Dimensions: L 18 x W 42 x H 41 mm

📌 Weight: 40 g

📌 Installation type: 502/503 flush-mount box 502/503

📌 Power Supply: 110-240 V ± 10% AC 50-60 Hz / 24 V +5% -15% DC

📌 Maximum current: 20 A, max. 14 A per channel

📌 Connectivity: WiFi 2.4 GHz + Bluetooth

📌 Power sensor: Yes

📌 Temperature sensor: Yes

📌 Maximum consumption of the device only: < 1.2 W

📌 Wi-Fi protocol: IEEE 802.11 b/g/n

📌 Radio output power: < 5 dBm

📌 Radio band: 2400-2483.5 MHz

📌 Operating temperature: -5 °C to +45 °C

📌 Range: up to 50 m outdoors; up to 30 m indoors

📌 Conductor cross-section: 0.2 to 2.5 mm² / 24 to 12 AWG

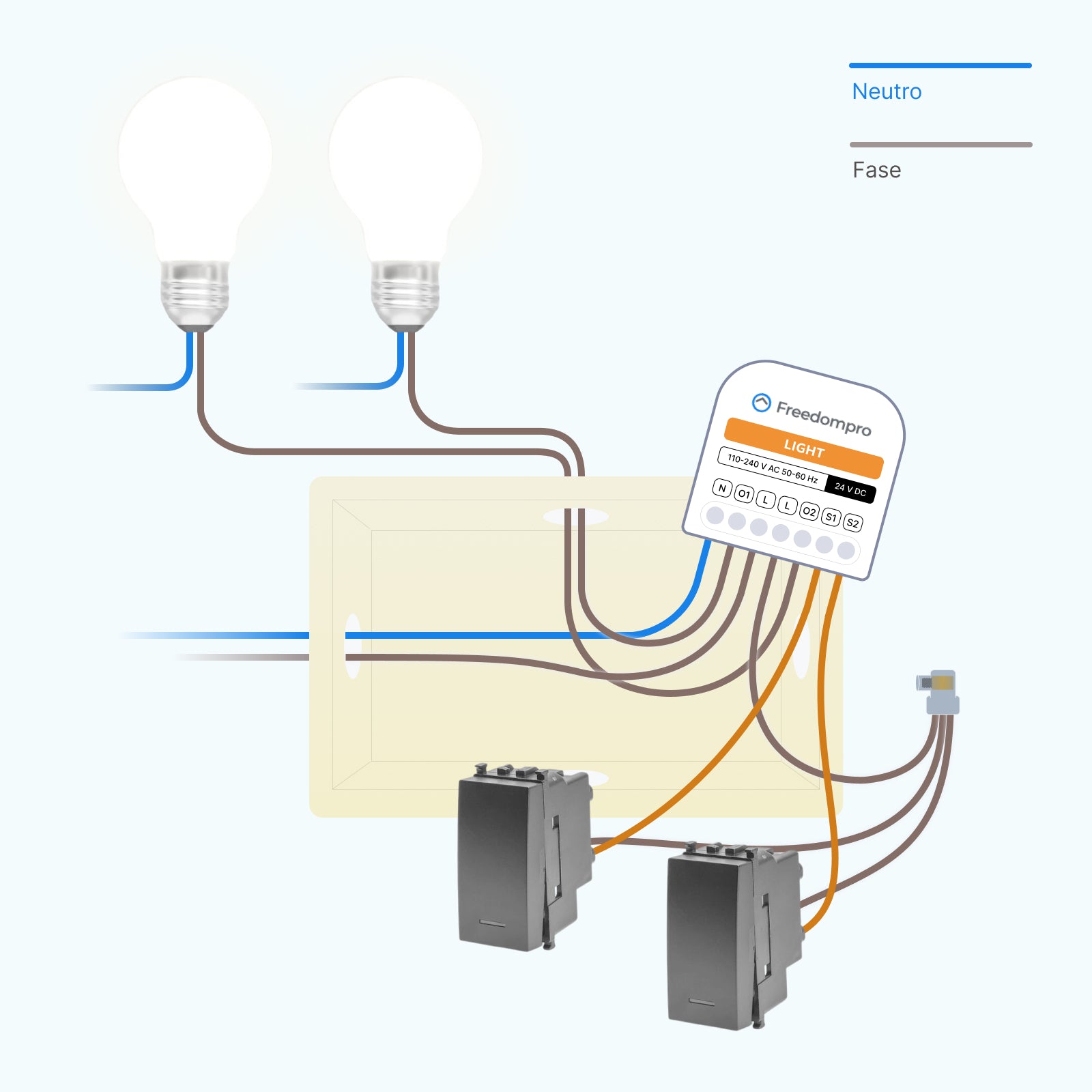

Schema elettrico

LB0602 – Modulo Interruttore WiFi 2 Luci Smart – Freedompro

Legenda

O1 = Output terminal of load circuit 1
O2 = Output terminal of load circuit 2
S1 = Input terminal for control line O1
S2 = Input terminal for control line O2
L/- = Phase or negative terminals
N/+ = Neutral or positive terminal

Download Schema

Spedizione gratuita sopra €79,90

Assistenza tecnica dedicata

Pagamento sicuro

Come si installa?

Follow these steps to correctly install the Freedompro LB0602-E Smart WiFi switch module:

⚠️ Before you start:
- Turn off power to the system by switching off the main breaker in the electrical panel.

1️⃣ Position the module
- Install the Freedompro LB0602-E WiFi switch behind the button or switch inside a 502/503 flush-mount box.

2️⃣ Connect the power wires
- Connect the phase wire (L) to the module L/- terminal.
- Connect the neutral wire (N) to the module N/+ terminal.

3️⃣ Connect the outputs to the lights
- Connect the first load (e.g. a bulb or group of lamps) to terminal O1.
- Connect the second load to terminal O2.

4️⃣ Connect the buttons or switches
- Connect the first button or switch to terminal S1 to control the load on O1.
- Connect the second button or switch to terminal S2 to control the load on O2.

5️⃣ Check the connections
- Make sure all wires are correctly connected and securely fastened.
- Make sure the wiring diagram has been followed.

6️⃣ Restore power
Once wiring is complete, restore power to the system from the electrical panel.

🔵 Module status
The module status LED will flash blue, indicating that it is ready for configuration.

🔗 Smart configuration
The Freedompro Smart WiFi module LB0602-E is now installed and ready to be configured through the Freedompro Home app or compatible Smart Home platforms.

Descrizione prodotto

LB0602-E Freedompro, MINI Smart WiFi relay switch Module for controlling 2 lights: smart home without compromise.
Transform your home lighting with LB0602-E Freedompro, the WiFi switch designed to make your lighting system smart, automated and connected. Installed directly in the 502/503 flush-mount box and powered at 110-240 V, it lets you manage 2 lights, including spotlights, ceiling lights, lamps and LED strips, offering maximum efficiency and full control wherever you are.
Advanced features for smart lighting.
LB0602-E is compatible with traditional switches, so you can keep using physical buttons and controls without changing the existing electrical system. This makes it a practical and immediate solution for integrating home automation without invasive work.
The device lets you control 2 lights, with flexible, customizable management. Matter certification ensures maximum compatibility with the main voice assistants and smart home ecosystems, including Amazon Alexa, Google Home, Apple Home, Home Assistant, Samsung SmartThings and Homey Pro, without additional hubs.
Lighting can be managed remotely over WiFi through the Freedompro Home app, or directly by voice command, for simple control from anywhere.
Advanced automations let you schedule lights on and off at the times you prefer and create custom habits for every need, improving comfort and optimizing energy consumption.
A reliable choice for your smart home.
Designed and made in Italy, LB0602-E combines innovation, reliability and safety for a complete, worry-free smart home experience.
