OL0602-E Smart WiFi Switch for 2 Electrical Sockets, 110-240 V 14 A Power Supply, MINI Module for 502/503 flush-mount box

OL0602-E – WiFi module smart for electrical sockets

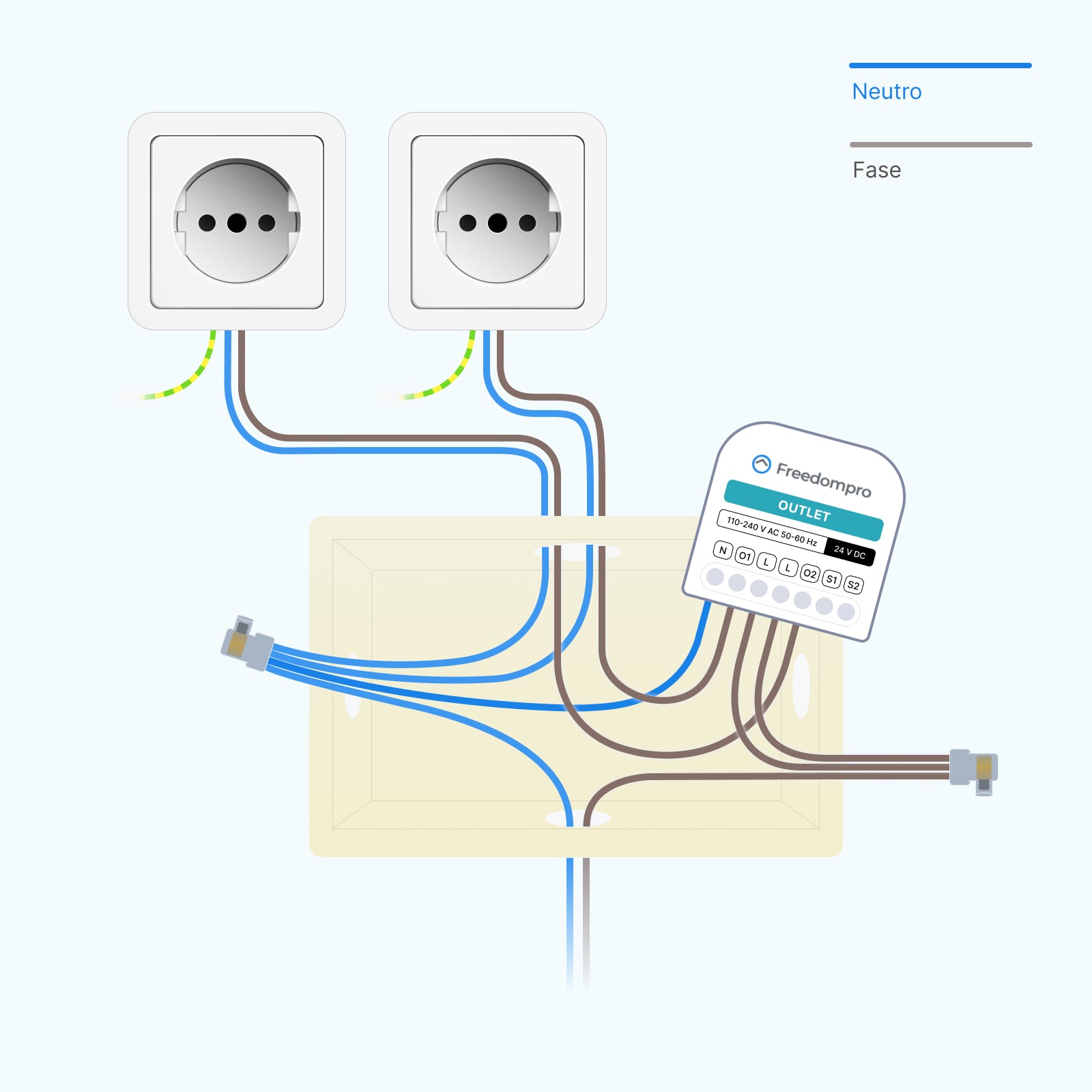

OL0602-E – installation diagram in the flush-mount box

OL0602-E – compatible with Matter, Alexa, Google Home, Apple HomeKit

OL0602-E WiFi Switch Controls 2 Smart Sockets, Power Supply 110–240 V 14 A, MINI Module for 502/503 Flush-Mounted Box

Name: OL0602-E WiFi Switch Controls 2 Smart Sockets, Power Supply 110–240 V 14 A, MINI Module for 502/503 Flush-Mounted Box
Brand: Freedompro
SKU: OL0602-E
Price: 38.90 EUR
Availability: InStock

Installazione Dietro interruttori e prese

Alimentazione 110-240 V

The Freedompro OL0602-E is a MINI WiFi switch relay designed to make the control of two electrical sockets smart, automated and connected. Installed in a 502/503 flush-mounted box, this WiFi module, powered by 110–240 V and rated at 14 A per channel, allows you to switch two electrical devices on and off directly from your smartphone, using voice commands or advanced automations, optimising comfort and energy efficiency.

OL0602-E is a Matter-certified Smart WiFi MINI Switch module for 2 electrical sockets, ensuring full compatibility with leading Smart Home ecosystems and voice assistants, including Amazon Alexa, Google Home, Apple Home, Home Assistant, Homey Pro and many others. You can easily integrate it into your home automation system without the need for additional hubs.

Using the Freedompro Home app, you can control the sockets remotely, schedule automatic on/off times and create customised scenarios to optimise energy consumption. Furthermore, thanks to the energy monitoring feature, you can keep a constant eye on the energy used by connected appliances, helping you reduce waste and improve the efficiency of your Smart Home.

Simple to install and incredibly powerful, the Freedompro OL0602-E is the ideal solution for anyone looking for a reliable, secure WiFi MINI switch for electrical sockets that is ready for the future of the Smart Home.

4.22(132 reviews)

Modello:

OL0602-E

Quantità

€38,90

IVA inclusa.

Non sei sicuro? Ti aiutiamo prima dell'acquisto

Compatibile Matter, davvero

Funziona con Apple Home, Google Home, Alexa, SmartThings e Home Assistant.

Zero hub, zero gateway

Si collega direttamente al WiFi di casa a 2.4 GHz. Niente bridge da comprare a parte.

Installi in 15 minuti

Nessun impianto da rifare, niente interruttori da sostituire.

Made in Italy

Certificato CE, supporto tecnico via chat o telefono.

Specifiche tecniche

📌 Dimensions: L 18 x W 42 x H 41 mm

📌 Weight: 40 g

📌 Installation type: 502/503 flush-mount box 502/503

📌 Power Supply: 110-240 V ± 10% AC 50-60 Hz / 24 V +5% -15% DC

📌 Maximum current: 20 A, max. 14 A per channel

📌 Connectivity: WiFi 2.4 GHz + Bluetooth

📌 Power sensor: Yes

📌 Temperature sensor: Yes

📌 Maximum consumption of the device only: < 1.2 W

📌 Wi-Fi protocol: IEEE 802.11 b/g/n

📌 Radio output power: < 5 dBm

📌 Radio band: 2400-2483.5 MHz

📌 Operating temperature: -5 °C to +45 °C

📌 Range: up to 50 m outdoors; up to 30 m indoors

📌 Conductor cross-section: 0.2 to 2.5 mm² / 24 to 12 AWG

Schema elettrico

OL0602 – Modulo WiFi 2 Prese Elettriche Smart – Freedompro

Legenda

O1 = Output terminal of load circuit 1
O2 = Output terminal of load circuit 2
S1 = Input terminal for control line O1
S2 = Input terminal for control line O2
L/- = Phase or negative terminals
N/+ = Neutral or positive terminal

Download Schema

Spedizione gratuita sopra €79,90

Assistenza tecnica dedicata

Pagamento sicuro

Come si installa?

Follow these steps to correctly install the Freedompro OL0602-E Smart WiFi switch module:

⚠️ Before you start:
- Turn off power to the system by switching off the main breaker in the electrical panel.

1️⃣ Position the module
- Install the Freedompro OL0602-E smart module inside the 502/503 flush-mount box, behind the 2 electrical sockets.

2️⃣ Connect the power wires
- Connect terminals L/- (phase) and N/+ (neutral) to the corresponding wires of the electrical system.

3️⃣ Connect the outputs to the electrical sockets
- Output O1: connect to the first electrical socket to be controlled.
- Output O2: connect to the second electrical socket to be controlled.

4️⃣ Optional: connect manual controls
- If necessary, connect the control buttons or switches to module terminals S1 and S2.

5️⃣ Check the connections
- Make sure all wires are correctly connected and securely fastened.
- Make sure the wiring diagram has been followed.

6️⃣ Restore power
Once wiring is complete, restore power to the system from the electrical panel.

🔵 Module status
The module status LED will flash blue, indicating that it is ready for configuration.

🔗 Smart configuration
The Freedompro Smart WiFi module OL0602-E is now installed and ready to be configured through the Freedompro Home app or compatible Smart Home platforms.

Descrizione prodotto

OL0602-E Freedompro, MINI Smart WiFi relay switch Module for controlling 2 electrical sockets: smart control and advanced automation.
Discover the convenience of home automation with OL0602-E Freedompro, the WiFi switch designed to make electrical sockets smart, connected and easy to manage. Installed directly in the 502/503 flush-mount box and powered at 110-240 V AC / 24 V DC, it lets you control 2 electrical sockets remotely with maximum efficiency and safety.
Smart control for everyday use.
OL0602-E is compatible with traditional controls and can be installed without invasive changes to the electrical system. It is ideal for controlling appliances, lamps, small loads and other connected devices from your smartphone, by voice or through automations.
Thanks to Matter certification, it integrates seamlessly with the main smart home ecosystems and voice assistants, including Amazon Alexa, Google Home, Apple Home, Home Assistant, Samsung SmartThings and Homey Pro. The 2.4 GHz WiFi connection enables independent operation without external hubs.
With the Freedompro Home app, you can switch connected sockets on and off in real time, set schedules and automations, and manage your home more easily wherever you are.
A reliable choice for your smart home.
Designed and made in Italy, OL0602-E is a practical solution for bringing smart control to your electrical sockets without replacing the existing system.
